Transporting Conveyor (FTC series)

Description

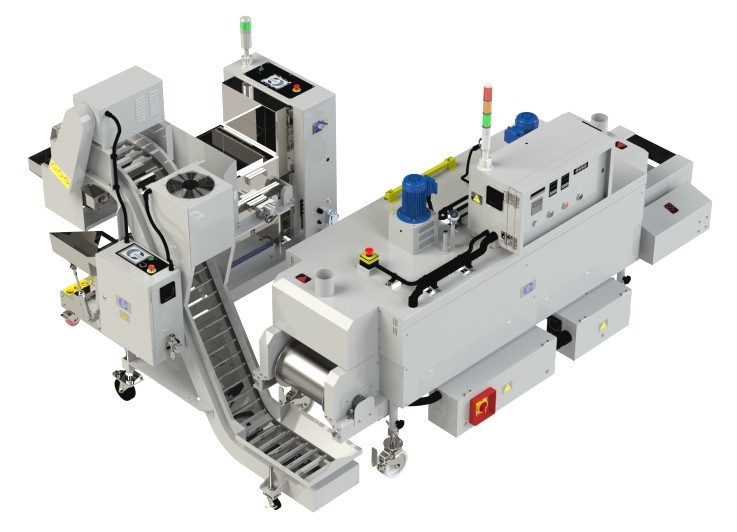

HSI Transporting Conveyors are designed to move a variety of materials from process to process. Steel belt and cleat materials are ideal for conveying small parts efficiently.

Features

  • Variable belt speed.
  • Removable casters.
  • Optional speed adjustable top fan for forced air cooling.



Specification

Model Conveyor
Partition
(Wp)
Conveyor
Partition
(Hp)
Conveyor
Width
(X)
Chute
Width
(T)
Inlet Height
- (H1)
Outlet Height
- (H2)
Dimension
- (L)
ModelFTC300A Conveyor Partition (Wp)126mm
(5.0”)
Conveyor Partition (Hp)20mm
(.8”)
Conveyor Width (X)230mm
(9.0”)
Chute Width (T)350mm
(13.8”)
Inlet Height - (H1)365-435mm
(14.4”-17.1”)
Outlet Height - (H2)670-740mm
(26.4”-29.1”)
Dimension - (L)1450mm
(57.1”)
ModelFTC300B Conveyor Partition (Wp)63mm
(2.5”)
Conveyor Partition (Hp)20mm
(.8”)
Conveyor Width (X)230mm
(9.0”)
Chute Width (T)350mm
(13.8”)
Inlet Height - (H1)365-435mm
(14.4”-17.1”)
Outlet Height - (H2)670-740mm
(26.4”-29.1”)
Dimension - (L)1450mm
(57.1”)
ModelFTC310A Conveyor Partition (Wp)126mm
(5.0”)
Conveyor Partition (Hp)20mm
(.8”)
Conveyor Width (X)230mm
(9.0”)
Chute Width (T)350mm
(13.8”)
Inlet Height - (H1)245-345mm
(9.6”-13.6”)
Outlet Height - (H2)1110-1210mm
(43.7”-47.6”)
Dimension - (L)1800mm
(70.9”)
ModelFTC310B Conveyor Partition (Wp)63mm
(2.5”)
Conveyor Partition (Hp)20mm
(.8”)
Conveyor Width (X)230mm
(9.0”)
Chute Width (T)350mm
(13.8”)
Inlet Height - (H1)245-345mm
(9.6”-13.6”)
Outlet Height - (H2)1110-1210mm
(43.7”-47.6”)
Dimension - (L)1800mm
(70.9”)
ModelFTC400A Conveyor Partition (Wp)126mm
(5.0”)
Conveyor Partition (Hp)20mm
(.8”)
Conveyor Width (X)330mm
(13.0”)
Chute Width (T)450mm
(17.7”)
Inlet Height - (H1)365-435mm
(14.4”-17.1”)
Outlet Height - (H2)670-740mm
(26.4”-29.1”)
Dimension - (L)1450mm
(57.1”)
ModelFTC400B Conveyor Partition (Wp)63mm
(2.5”)
Conveyor Partition (Hp)20mm
(.8”)
Conveyor Width (X)330mm
(13.0”)
Chute Width (T)450mm
(17.7”)
Inlet Height - (H1)365-435mm
(14.4”-17.1”)
Outlet Height - (H2)670-740mm
(26.4”-29.1”)
Dimension - (L)1450mm
(57.1”)
ModelFTC410A Conveyor Partition (Wp)126mm
(5.0”)
Conveyor Partition (Hp)20mm
(.8”)
Conveyor Width (X)330mm
(13.0”)
Chute Width (T)450mm
(17.7”)
Inlet Height - (H1)245-345mm
(9.6”-13.6”)
Outlet Height - (H2)1110-1210mm
(43.7”-47.6”)
Dimension - (L)1800mm
(70.9”)
ModelFTC410B Conveyor Partition (Wp)63mm
(2.5”)
Conveyor Partition (Hp)20mm
(.8”)
Conveyor Width (X)330mm
(13.0”)
Chute Width (T)450mm
(17.7”)
Inlet Height - (H1)245-345mm
(9.6”-13.6”)
Outlet Height - (H2)1110-1210mm
(43.7”-47.6”)
Dimension - (L)1800mm
(70.9”)
ModelFTC500A Conveyor Partition (Wp)126mm
(5.0”)
Conveyor Partition (Hp)20mm
(.8”)
Conveyor Width (X)430mm
(16.9”)
Chute Width (T)550mm
(21.7”)
Inlet Height - (H1)365-435mm
(14.4”-17.1”)
Outlet Height - (H2)670-740mm
(26.4”-29.1”)
Dimension - (L)1450mm
(57.1”)
ModelFTC500B Conveyor Partition (Wp)63mm
(2.5”)
Conveyor Partition (Hp)20mm
(.8”)
Conveyor Width (X)430mm
(16.9”)
Chute Width (T)550mm
(21.7”)
Inlet Height - (H1)365-435mm
(14.4”-17.1”)
Outlet Height - (H2)670-740mm
(26.4”-29.1”)
Dimension - (L)1450mm
(57.1”)
ModelFTC510A Conveyor Partition (Wp)126mm
(5.0”)
Conveyor Partition (Hp)20mm
(.8”)
Conveyor Width (X)430mm
(16.9”)
Chute Width (T)550mm
(21.7”)
Inlet Height - (H1)245-345mm
(9.6”-13.6”)
Outlet Height - (H2)1110-1210mm
(43.7”-47.6”)
Dimension - (L)1800mm
(70.9”)
ModelFTC510B Conveyor Partition (Wp)63mm
(2.5”)
Conveyor Partition (Hp)20mm
(.8”)
Conveyor Width (X)430mm
(16.9”)
Chute Width (T)550mm
(21.7”)
Inlet Height - (H1)245-345mm
(9.6”-13.6”)
Outlet Height - (H2)1110-1210mm
(43.7”-47.6”)
Dimension - (L)1800mm
(70.9”)
* The specifications and features are subject to change without notice.
